DTC B1B71:11, B1B71:13
id070200817100
DTC B1B71:11, B1B71:13 |
Evaporator temperature sensor system |
---|---|
POSSIBLE CAUSE
|
• Evaporator temperature sensor malfunction
• Open or short circuit in wiring harness between climate control unit and evaporator temperature sensor
|
Diagnostic Procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
• Inspect the evaporator temperature sensor. (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
• Is it normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the evaporator temperature sensor. (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
|
||
2
|

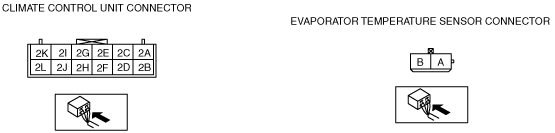

• Disconnect the climate control unit connector and the evaporator temperature sensor connector.
• Is there an open circuit in the wiring harness between the following terminals of the climate control unit and the evaporator temperature sensor?
|
Yes
|
Repair the wiring harness.
|
No
|
Go to the next step.
|
||
3
|
• Is there a short circuit to ground in the wiring harness between climate control unit terminal 2E and evaporator temperature sensor terminal B?
|
Yes
|
Repair the wiring harness.
|
No
|
Connect the climate control unit connector, then go to the next step.
|
||
4
|
• Switch ignition to ON.
• Inspect the voltage at the following climate control unit terminal (wiring harness-side).
• Is the voltage normal? (Approx. 5 V)
|
Yes
|
The system is normal at present. (Clear the past malfunction from the memory.)
|
No
|
Inspect the connection of the climate control unit connector.
|
||
![]() |
