DTC B1C1C:11, B1C1C:13

id070200817200

DTC B1C1C:11, B1C1C:13

Airflow mode actuator (potentiometer) system

POSSIBLE CAUSE

•  Airflow mode actuator malfunction

•  Open circuit in wiring harness between climate control unit and airflow mode actuator

•  Short circuit in wiring harness between climate control unit (terminal 2B) and airflow mode actuator (terminal C)

DTC B1C1C:11, B1C1C:13	Airflow mode actuator (potentiometer) system
POSSIBLE CAUSE	• Airflow mode actuator malfunction • Open circuit in wiring harness between climate control unit and airflow mode actuator • Short circuit in wiring harness between climate control unit (terminal 2B) and airflow mode actuator (terminal C)

Diagnostic Procedure

STEP	INSPECTION		ACTION
1	• Inspect the airflow mode actuator. (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].) • Is it normal?	Yes	Go to the next step.
1		No	Replace the airflow mode actuator. (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

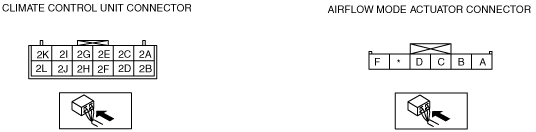

2	• Disconnect the climate control unit connector and the airflow mode actuator connector. • Is there an open circuit in the wiring harness between the following terminals of the climate control unit and the airflow mode actuator? ― 2K—A ― 2B—C ― 2L—B	Yes	Repair the wiring harness.
2		No	Go to the next step.
3	• Is there a short circuit to ground in the wiring harness between climate control unit terminal 2B and airflow mode actuator terminal C?	Yes	Repair the wiring harness.
3		No	The system is normal at present. (Clear the past malfunction from the memory.)
