CONTROL SYSTEM STRUCTURAL VIEW [FULL-AUTO AIR CONDITIONER]

id0740a1100200

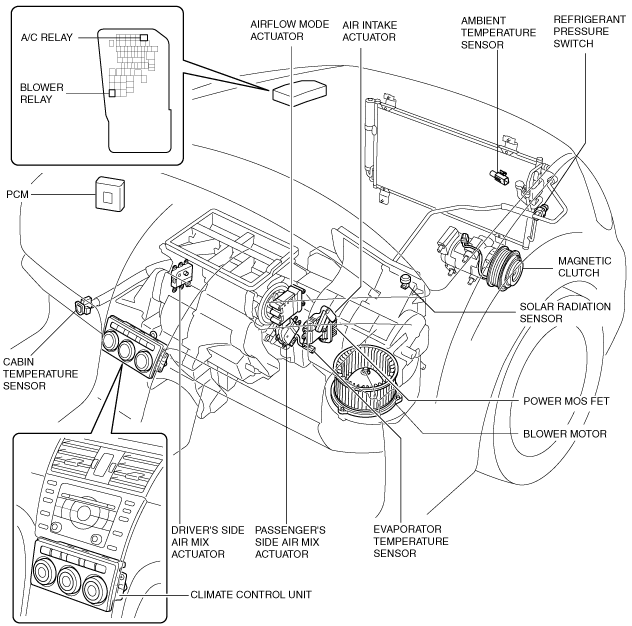

L.H.D. (LF, L8, L5)

am6zzn00001458

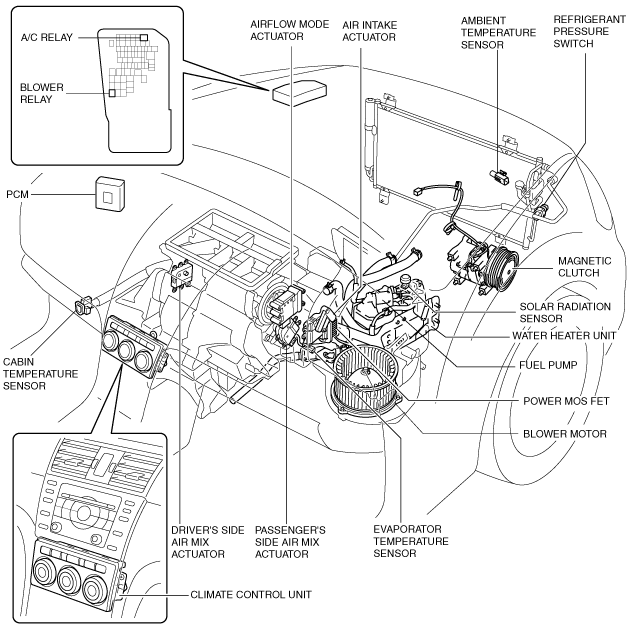

L.H.D. (MZR-CD (RF Turbo))

am6zzn00001459

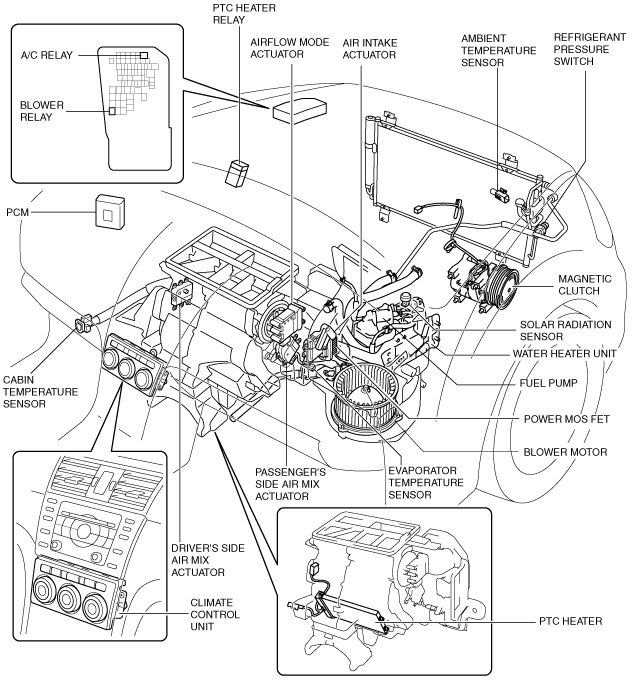

L.H.D. (MZR-CD 2.2)

am6zzn00001460

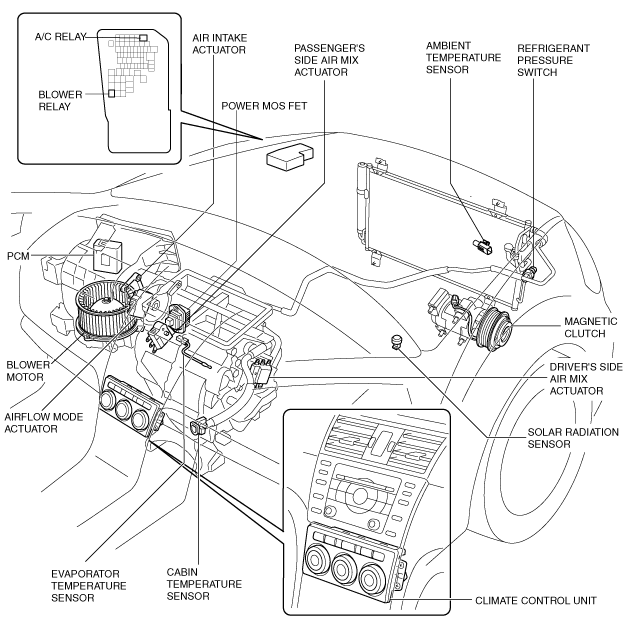

R.H.D. (LF, L8, L5)

am6zzn00001461

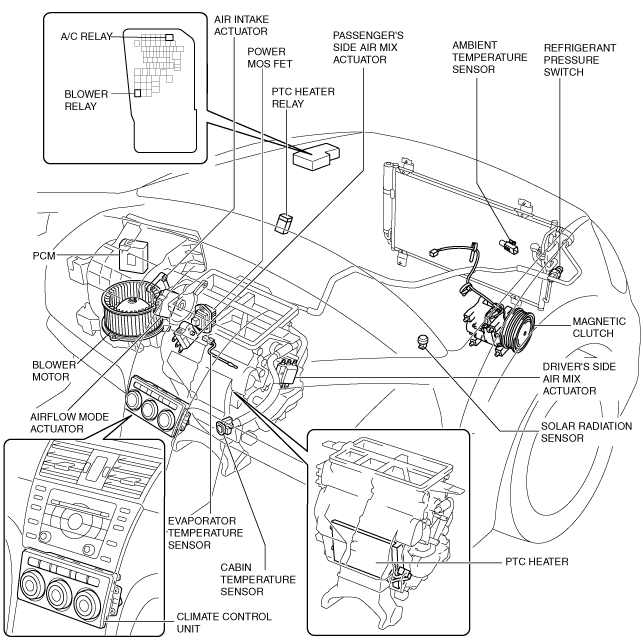

R.H.D. (MZR-CD (RF Turbo), MZR-CD 2.2)

am6zzn00001462
