A/C COMPRESSOR CONTROL OPERATION [FULL-AUTO AIR CONDITIONER]
id0740a1103200
A/C Compressor Automatic Control
• The climate control unit determines A/C ON/OFF mode based on the ambient temperature.

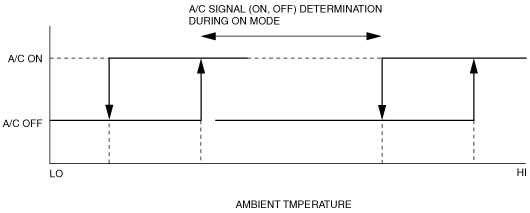

• In A/C mode, the signal (magnetic clutch) is turned on/off according to the ambient temperature. By setting the A/C signal off temperature low when strong cooling performance is needed, such as when the ambient temperature is high, and setting it high in order conditions, cooling comfort and fuel economy during A/C operation are improved.
Correction
Defroster correction
• When the DEFROSTER switch is turned on, the system is switched to A/C ON mode to improve defrosting.
Compressor off temperature correction (Wiper operating)
• The compressor off temperature is turned according to front wiper operating condition.
A/C Compressor Manual Control
• A/C ON or OFF mode is selected by operating the A/C switch.
|
A/C mode
|
Operation condition
|
|
A/C ON mode (A/C display)
|
Fixed in A/C mode.
|
|
A/C OFF mode (No display)
|
Fixed in A/C OFF mode.
|
