PTC HEATER CONSTRUCTION [FULL-AUTO AIR CONDITIONER]

id0740a1106500

• The PTC heater is supplementary heater to assist A/C unit heating performance.

am6zzn00001245

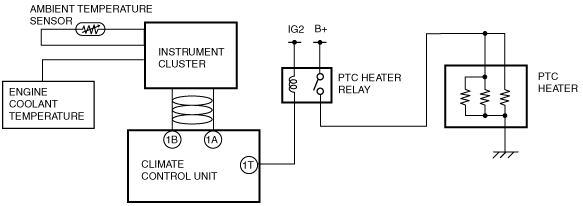

System Wiring Diagram

am6zzn00001339

Operation

• The PTC heater relay will turned ON when all of the following conditions are met:

― Blower fan ON.

― Set temperature is MAX HOT.

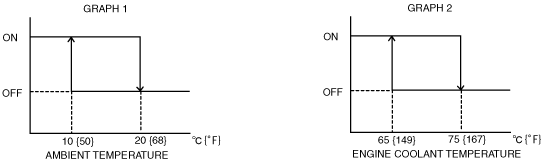

― Ambient temperature is included in definite value. (See Graph 1.)

― Engine coolant temperature is included in

definite value. (See Graph 2.)
