CONTROL SYSTEM STRUCTURAL VIEW [MANUAL AIR CONDITIONER]

id0740a2100200

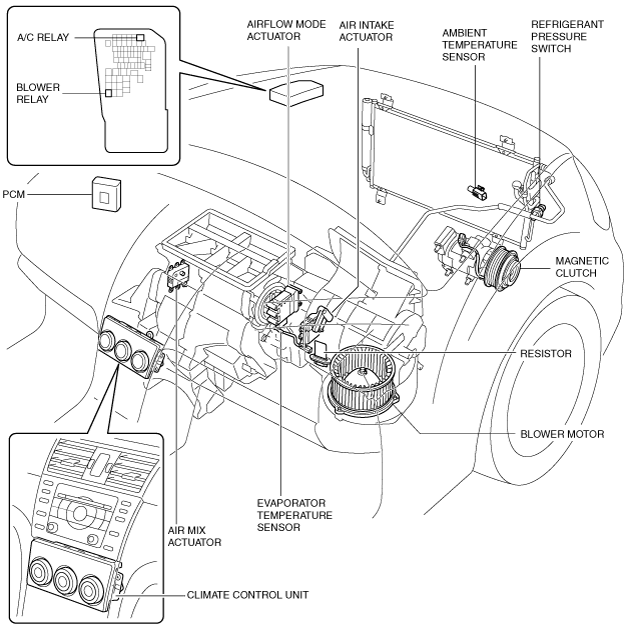

L.H.D. (LF, L8, L5)

am6zzn00000399

L.H.D. (MZR-CD (RF Turbo))

am6zzn00001222

L.H.D. (MZR-CD 2.2)

am6zzn00001503

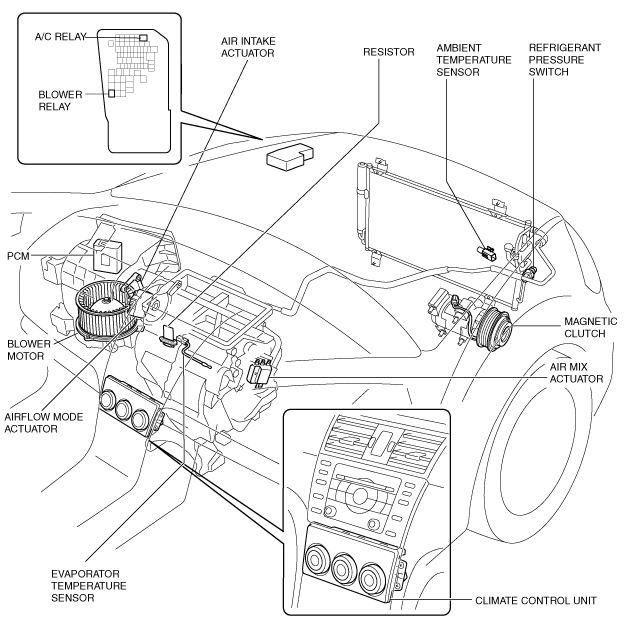

R.H.D. (LF, L8, L5)

am6zzn00000400

R.H.D. (MZR-CD (RF Turbo), MZR-CD 2.2)

am6zzn00001223
