MANUAL AIR CONDITIONER CONTROL SYSTEM [MANUAL AIR CONDITIONER]
id0740a2101000

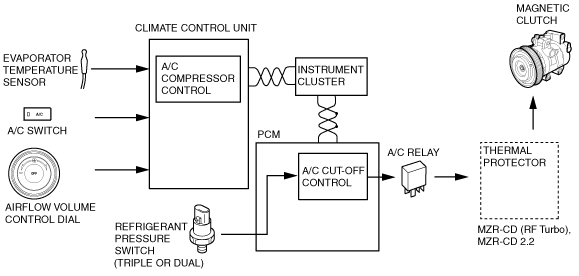

Block Diagram
• The climate control unit sends an A/C signal to the PCM via the instrument cluster based on signals sent from the A/C switch, airflow volume control dial and evaporator temperature sensor.
Outline of Control System
• Manual air conditioner A/C compressor control.
|
Control name
|
Control part
|
|
A/C compressor control
|
Climate control unit
|
A/C Compressor Control
• The climate control unit sends an A/C signal to the PCM based on signals sent from the A/C switch, airflow volume control dial and evaporator temperature sensor.
A/C signal on/off control
-
• The climate control unit turns the A/C signal (magnetic clutch) on and off based on the ambient temperature when the A/C switch and airflow volume control dial are on.
