MAGNETIC CLUTCH INSPECTION [MANUAL AIR CONDITIONER]

id0740a2800600

1.  Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.

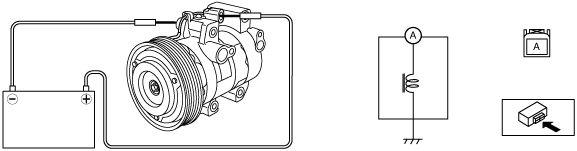

LF, L8, L5

am6zzw00003498

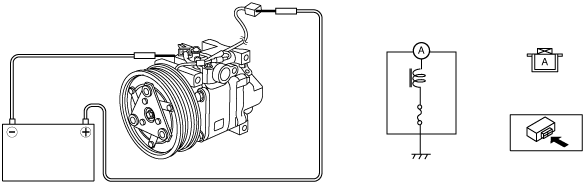

MZR-CD (RF Turbo)

am6zzw00004222

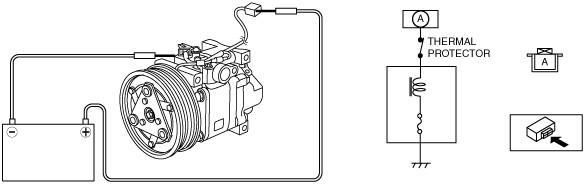

MZR-CD 2.2

am6zzw00004697

2.  Verify that the magnetic clutch operates.

•  If there is any malfunction, replace the magnetic clutch.
