CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER]


id0740a2802200

1.  Remove the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

2.  Connect the climate control unit connector.

3.  Connect the negative (-) lead of the tester to body ground.

4.  Switch the ignition to ON.

5.  By inserting the positive (+) lead of the tester into each climate control unit terminal, measure the voltage according to the terminal voltage table.

•  If there is any malfunction, inspect the parts under “Inspection item (s)”.
―  If the parts under “Inspection item (s)” are found to be normal, replace the climate control unit.

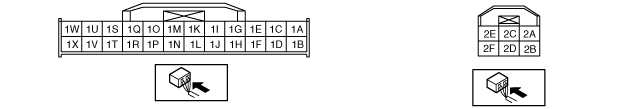

Terminal Voltage Table (Reference)

am6zzw00001116

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)

1A
Illumination control
Instrument cluster
Headlight switch ON and panel light control switch at max
1.0 or less
•  Related wiring harness
•  Instrument cluster
Headlight switch ON and panel light control switch at min
B+
1B
TNS signal
Auto light/wiper control module
Headlight switch ON
B+
•  Related wiring harness
•  Auto light/wiper control module
•  Headlight switch
Headlight switch OFF
1.0 or less
1C
Motor operation (RECIRCULATE)
Air intake actuator
Moving towards FRESH
1.0 or less
•  Related wiring harness
•  Air intake actuator
Moving towards RECIRCULATE
B+
1D
Motor operation
Airflow mode actuator
Moving towards DEFROSTER
B+
•  Related wiring harness
•  Airflow mode actuator
Moving towards VENT
1.0 or less
1E
Motor operation (FRESH)
Air intake actuator
Moving towards FRESH
B+
•  Related wiring harness
•  Air intake actuator
Moving towards RECIRCULATE
1.0 or less
1F
Motor operation
Airflow mode actuator
Moving towards VENT
B+
•  Related wiring harness
•  Airflow mode actuator
Moving towards DEFROSTER
1.0 or less
1G
Motor operation (COLD)
Air mix actuator
Moving towards HOT
1.0 or less
•  Related wiring harness
•  Air mix actuator
Moving towards COLD
B+
1H*1
PTC relay
PTC heater relay
PTC heater operation
1.0 or less
•  Related wiring harness
•  PTC heater relay
PTC heater stopped
B+
1I
Motor operation (HOT)
Air mix actuator
Moving towards HOT
B+
•  Related wiring harness
•  Air mix actuator
Moving towards COLD
1.0 or less
1J
1K
Rear window defroster switch
Rear window defroster relay
Rear window defroster switch OFF
B+
•  Related wiring harness
•  Rear window defroster relay
•  Climate control unit: terminal voltage (1S)
•  Climate control unit
Rear window defroster switch ON
1.0 or less
1L
A/C on
Refrigerant pressure switch
A/C off
B+
•  Related wiring harness
A/C on
1.0 or less
1M
Fan on
Fan switch
Fan switch ON
1.0 or less
•  Related wiring harness
•  Climate control unit: terminal voltage (1O)
•  Fan switch
Fan switch OFF
B+
1N
1O
IG2
AIR COND 10 A fuse
IG SW ON
B+
•  Related wiring harness
•  AIR COND 10 A fuse
IG SW OFF
1.0 or less
1P
Evaporator temperature sensor input
Evaporator temperature sensor
Compared with temperature detected by evaporator temperature sensor
Refer to graph 1
•  Related wiring harness
•  Evaporator temperature sensor
•  Climate control unit: terminal voltage (1O,1U)
1Q
B+
ROOM 15 A fuse
Under any condition
B+
•  Related wiring harness
•  ROOM 15 A fuse
1R
Potentiometer input
Airflow mode actuator
VENT
4.33 or more
•  Related wiring harness
•  Airflow mode actuator
•  Climate control unit: terminal voltage (1S)
BILEVEL
3.42
HEAT
2.50
HEAT/DEF
1.58
DEFROSTER
1.0 or less
1S
+5V
•  Air mix actuator
•  Airflow mode actuator
IG SW ON
5
•  Related wiring harness
•  Air mix actuator
•  Airflow mode actuator
•  Climate control unit: terminal voltage (1U)
IG SW OFF
1.0 or less
1T
Potentiometer input
Air mix actuator
Set temperature at MAX COLD
0.7
•  Related wiring harness
•  Air mix actuator
•  Climate control unit: terminal voltage (1S)
Set temperature at MAX HOT
4.29
1U
GND
Body ground
Under any condition
1.0 or less
•  Related wiring harness
1V
Sensor GND
•  Ambient temperature sensor
•  Evaporator temperature sensor
•  Air mix actuator
•  Airflow mode actuator
Under any condition
1.0 or less
•  Climate control unit: terminal voltage (1U)
1W
MS_CAN_H
CAN related module
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
•  Related wiring harness
1X
MS_CAN_L
CAN related module
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
•  Related wiring harness
2A
Blower fan switch GND
GND
Under any condition
1.0 or less
•  Related wiring harness
2C
Blower fan 1st
Resistor
IG SW ON, fan switch 1st
1.0 or less
•  Related wiring harness
Fan switch off
B+
2D
Blower fan 4th
Resistor
IG SW ON, fan switch 4th
1.0 or less
•  Related wiring harness
Fan switch off
B+
2E
Blower fan 2nd
Resistor
IG SW ON, fan switch 2nd
1.0 or less
•  Related wiring harness
Fan switch off
B+
2F
Blower fan 3rd
Resistor
IG SW ON, fan switch 3rd
1.0 or less
•  Related wiring harness
Fan switch off
B+

*1  :With PTC heater
