SECURITY LIGHT: 11, DTC: B10D9:87/P1260:00 [IMMOBILIZER SYSTEM (KEYLESS ENTRY SYSTEM)]

id0902e5353000

DTC

Security light flashing pattern

11

No detected communication with coil antenna

M-MDS display

Instrument cluster

B10D9:87

PCM

P1260:00

POSSIBLE CAUSE

•  METER IG 15 A fuse malfunction

•  The coil antenna connector is pulled out

•  Coil antenna malfunction

•  Instrument cluster malfunction

•  Related wiring harnesses malfunction

DTC	Security light flashing pattern	11	No detected communication with coil antenna
POSSIBLE CAUSE	• METER IG 15 A fuse malfunction • The coil antenna connector is pulled out • Coil antenna malfunction • Instrument cluster malfunction • Related wiring harnesses malfunction

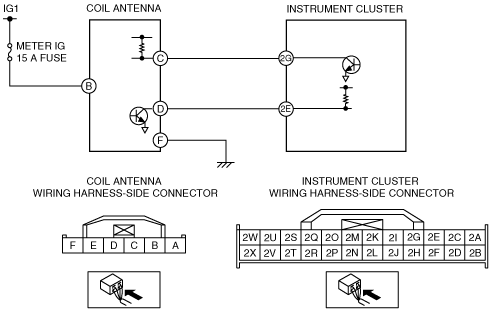

System wiring diagram

am6zzw00001760

Diagnostic Procedure

Step

Inspection

Action

1

VERIFY COIL ANTENNA CORRECTLY INSTALLED

•  Verify the installation condition of the coil antenna.

•   Is the coil antenna correctly installed? (Is the connector pulled out?)

Yes

Go to the next step.

No

Install the coil antenna correctly, then go to Step 9.

(See COIL ANTENNA REMOVAL/INSTALLATION [KEYLESS ENTRY SYSTEM].)

2

FUSE INSPECTION

•  Switch the ignition to off.

•  Disconnect the negative battery cable.

•  Remove the METER IG 15 A fuse.

•  Is the fuse normal?

Yes

Go to the next step.

No

Replace the fuse, then go to Step 9.

3

INSPECT COIL ANTENNA POWER SUPPLY

•  Disconnect the coil antenna connector.

•  Connect the negative battery cable.

•  Switch the ignition to ON.

•  Measure the voltage at coil antenna terminal B.

―  Is the voltage 8 V or more?

Yes

Go to the next step.

No

Repair or replace the wiring harness, then go to Step 9.

4

INSPECT WIRING HARNESS BETWEEN COIL ANTENNA AND BODY GROUND

•  Switch the ignition to off.

•  Disconnect the negative battery cable.

•  Measure the continuity of the wiring harness between coil antenna terminal C and body ground.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness, then go to Step 9.

5

INSPECT COMMUNICATION CIRCUIT (INPUT) FOR CONTINUITY

•  Disconnect the instrument cluster connector.

•  Measure the continuity of the wiring harness between coil antenna terminal C and instrument cluster terminal 2G.

―   Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness between coil antenna and the instrument cluster, then go to Step 9.

6

INSPECT COMMUNICATION CIRCUIT (OUTPUT) FOR CONTINUITY

•  Measure the continuity of the wiring harness between coil antenna terminal D and instrument cluster terminal 2E.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness between coil antenna and the instrument cluster, then go to Step 9.

7

INSPECT COIL ANTENNA INPUT SIGNAL CIRCUIT

•  Connect the coil antenna connector.

•  Connect the negative battery cable.

•  Switch the ignition to ON.

•  Measure the voltage at coil antenna terminal C.

―  Is the voltage 8 V or more?

Yes

Go to the next step.

No

Replacing the coil antenna.

(See COIL ANTENNA REMOVAL/INSTALLATION [KEYLESS ENTRY SYSTEM].)

Go to Step 9.

8

INSPECT COMMUNICATION CIRCUIT (OUTPUT) FOR CONTINUITY

•  Measure the continuity of the wiring harness between coil antenna terminal F and body ground.

•  Is there continuity?

Yes

Go to the next step.

No

Replacing the coil antenna.

(See COIL ANTENNA REMOVAL/INSTALLATION [KEYLESS ENTRY SYSTEM].)

Go to the next step.

9

VERIFY AFTER REPAIR

•  Switch the ignition to off.

•  Disconnect the negative battery cable.

•  Reconnect the disconnected connectors.

•  Connect the negative battery cable.

•  Clear the DTC.
(See CLEARING DTC [IMMOBILIZER SYSTEM (KEYLESS ENTRY SYSTEM)].)

•  Verify if any DTCs are displayed.
(See DTC INSPECTION [IMMOBILIZER SYSTEM (KEYLESS ENTRY SYSTEM)].)

•  Are DTCs output again?

―  Instrument cluster: B10D9:87

―  PCM:P1260:00

Yes

Replace the instrument cluster and program the immobilizer system-related parts.

(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM].)

Go to the next step.

No

Go to the next step.

10

VERIFY THAT NO OTHER DTCs ARE PRESENT

•  Verify if other DTCs are displayed.

•  Are any other DTCs output?

Yes

Perform the corresponding DTC inspection.

No

DTC troubleshooting completed.
