BONNET ADJUSTMENT

id091000407300

Gap Adjustment

1. Measure the gap between the bonnet and body.

am6zzw00001307

Standard clearance

a:-0.1―2.9 mm {-0.03―0.11 in}

b:2.5―4.5 mm {0.10―0.17 in}

2. Remove the front fender molding. (See COWL GRILLE REMOVAL/INSTALLATION)

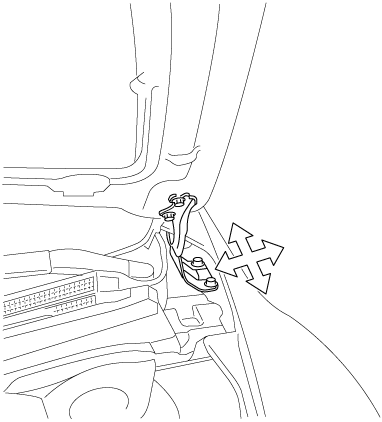

3. Loosen the bonnet hinge installation bolts and adjust the gap by moving the bonnet hinge back and forth, left and right.

am6zzw00001308

4. Tighten the bolts. (See BONNET REMOVAL/INSTALLATION)

5. Install the front fender molding. (See COWL GRILLE REMOVAL/INSTALLATION)

Height Difference Adjustment

1. Measure the height difference between the bonnet and body.

am6zzw00001309

Standard clearance

a:3.0―6.0mm {0.12―0.23 in}

b:-0.7―1.7mm {-0.02―0.06 in}

c:-1.2―1.2mm {-0.047―0.047 in}

2. Turn the stop rubber to adjust.

am6zzw00001310
