BUMPER STIFFENER LOWER REMOVAL/INSTALLATION


id091000888900

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION)

3.  Remove the front crossmember extension. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION)

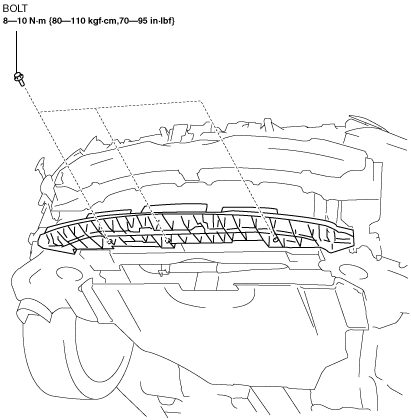

4.  Remove the bolts.

am6zzw00001223

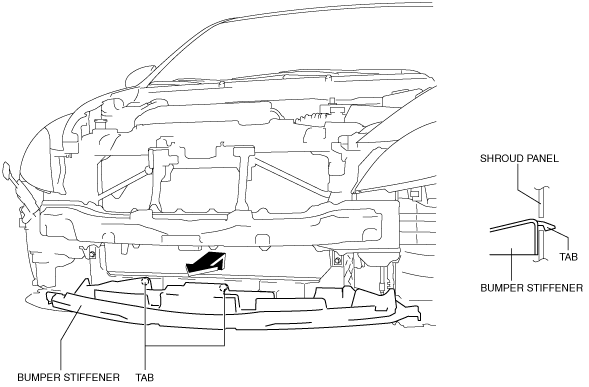

5.  Move the bumper stiffener lower in the direction of the arrow shown in the figure, while remove the tabs.

am6zzw00001224

6.  Install in the reverse order of removal.
