POWER OUTER MIRROR SWITCH INSPECTION

id091200420500

1.  Switch the ignition to on.

2.  Verify that the power outer mirror switch can be operated for approx. 43 s after the ignition is switched off.

•  If the power outer mirror cannot be operated for approx. 43 s after the ignition is switched off, or if the power outer mirror can still be operated after approx. 43 s, replace the power outer mirror switch.

3.  Disconnect the negative battery cable.

4.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

5.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

6.  Remove the switch panel. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)

7.  Using a tester, verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power outer mirror switch.

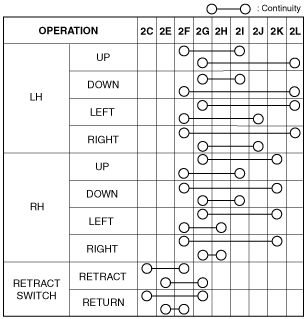

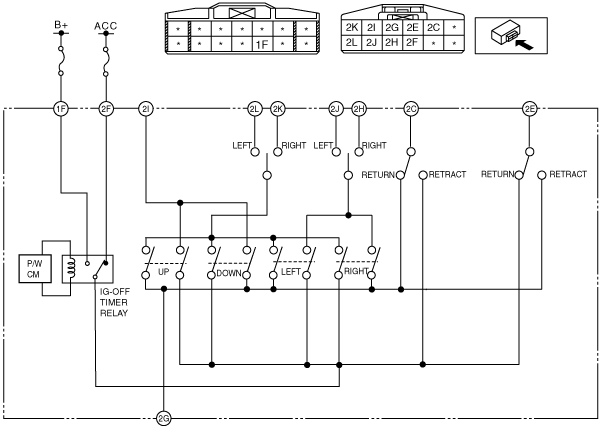

L.H.D.

am6zzw00001831

am6zzw00001829

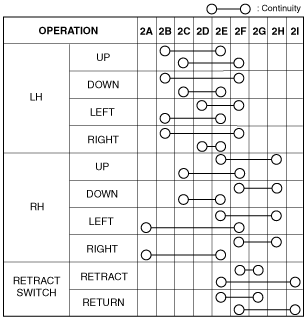

R.H.D.

am6zzw00001825

am6zzw00001830
