POWER OUTER MIRROR OPERATION


id091200520900

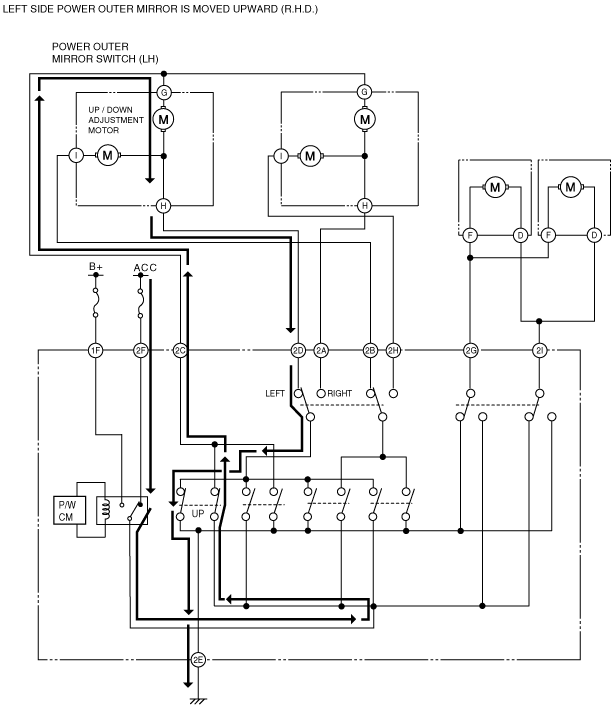

Mirror Glass Adjustment

•  The left/right selection switch establishes the left or right side outer mirror circuit, and current is supplied in one of the four directions according to the position of the mirror glass adjustment switch. As a result, the motor rotates either up or down, left or right.
am6zzn00001606

Retract/Return

•  When the retract/return switch is moved to the retract position, a circuit is established, and the retract/return motor rotates in the retracting direction.
•  During return operation, the motor rotates in the opposite (returning) direction.
am6zzn00001607

IG OFF timer

•  Allows operation of the power outer mirror for approx. 43 s after ignition has been from the ON to the OFF.
