ACTIVE HEADREST OPERATION

id091300257000

1.  If the vehicle is hit from the rear, impact that would otherwise be applied to the driver or front passenger is captured by the lower area of the seat back.

am6zzn00000718

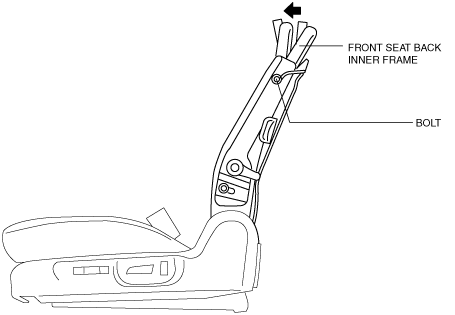

2.  The front seat back inner frame tilts forward on the bolt support point.

am6zzn00000721

3.  After the impact force has subsided, the front seat back inner frame returns to its original position via the bolt support point by spring force.

am6zzn00000722
