POWER SEAT SWITCH INSPECTION


id091300801100

1.  Disconnect the power seat switch connector.

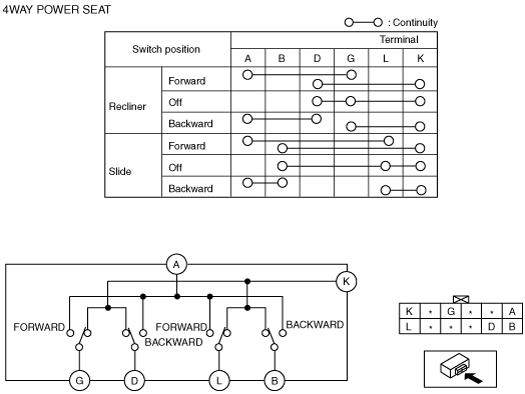

2.  Inspect for continuity between the power seat switch connector terminals using an ohmmeter.

•  If not as specified, replace the power seat switch.

L.H.D.

am6zzw00002989
am6zzw00002990

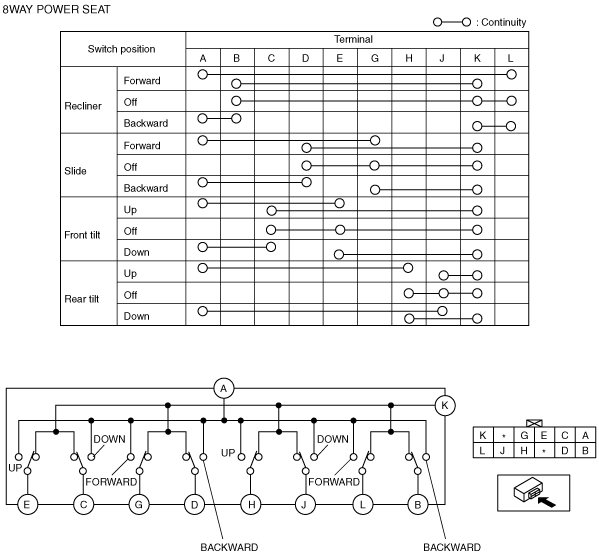

R.H.D.

am6zzw00002991
am6zzw00002990
