FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION

id091300911700

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait 1 min or more.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4.  Remove the side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

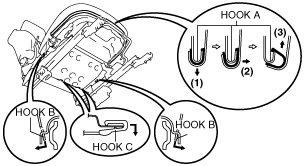

5.  Detach hook A by sliding it in the order of (1), (2), and (3) as shown in the figure.

am2zzw00002466

6.  Detach hook B and C in the direction of the arrow shown in the figure.

7.  Remove the front seat cushion trim and the front seat cushion pad from the front seat frame as a single unit.

am2zzw00002467

8.  Remove rings C in the order of (4), (5), (6) and (7) as shown in the figure, then remove the front seat cushion trim from the front seat cushion pad in the direction of the arrow shown in the figure.

am6zzw00002470

9.  Install in the reverse order of removal.
