FRONT SEAT BACK INNER FRAME REMOVAL/INSTALLATION

id091300913000

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait 1 min or more.

3.  Remove the front seat. See FRONT SEAT REMOVAL/INSTALLATION)

4.  Remove the front seat back trim. (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION)

5.  Remove the nuts and screw then lumber unit.

am6zzw00002961

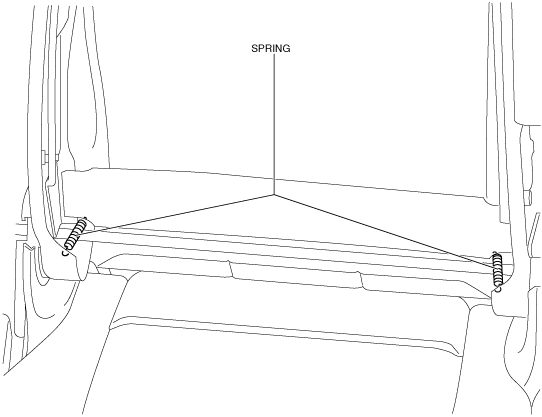

6.  Remove the springs.

am6zzw00002471

7.  Remove the bolts.

am6zzw00002472

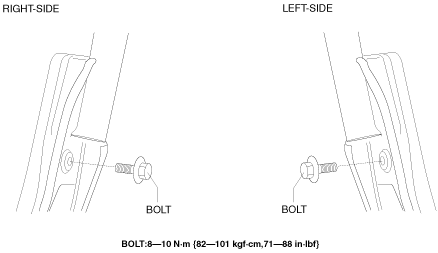

8.  Remove the bolts.

am6zzw00002962

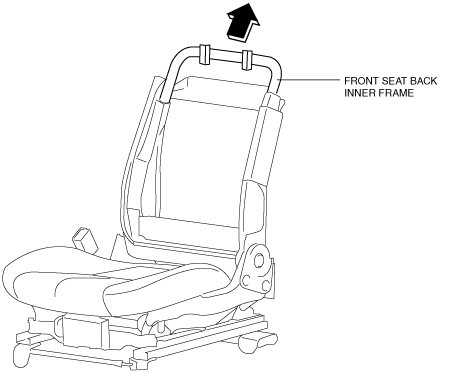

9.  Remove the front seat back inner frame in the direction of arrow shown in the figure.

am6zzw00002473

10.  Install in the reverse order of removal.
