RETURN SWITCH INSPECTION

id091400412000

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Recess (See RECESS REMOVAL/INSTALLATION.)

(4)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(5)  Liftgate latch and lock motor (See LIFTGATE LATCH AND LOCK MOTOR REMOVAL/INSTALLATION.)

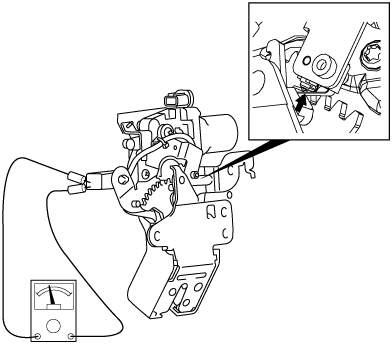

3.  Press the return switch and verify that the continuity is as indicated in the table.

am6zzw00002624

4.  Verify that the continuity is as indicated in the table.

am6zzw00002625

•  If not as indicated in the table, replace the liftgate latch and lock motor.

am6zzw00002626
