FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

id091400429500

1.  To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in}.

am6zzw00000576

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(4)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(5)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(6)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

4.  Remove the service hole cover.

am6zzw00000570

5.  Remove the tab, then remove the door lock-link bracket. (Driver’s door).

am6zzw00000571

6.  Disconnect the key rod from the front outer handle bracket.

am6zzw00000572

7.  Remove the screw

am6zzw00004509

8.  Detach the clips.

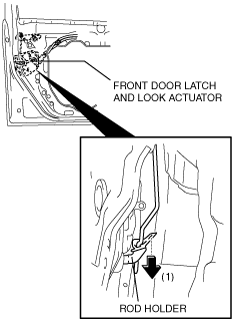

9.  Press down the rod holder of the front door latch and lock actuator in the direction of the arrow.

am6zzw00000577

10.  Maintaining the condition in Step 9, remove the front door latch and lock actuator.

am6zzw00000578

11.  Install in the reverse order of removal.
