REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION

id091400430600

1.  The following actuator and switch are integrated with the rear door latch and lock actuator. Inspect the rear door latch and lock actuator according to each inspection procedure for the following items.

•  Rear door lock actuator (See REAR DOOR LOCK ACTUATOR INSPECTION.)

•  Rear door latch switch (See REAR DOOR LATCH SWITCH INSPECTION.)

•  Rear door lock-link switch(Vehicles with theft-deterrent system) (See DOOR LOCK-LINK SWITCH INSPECTION.)

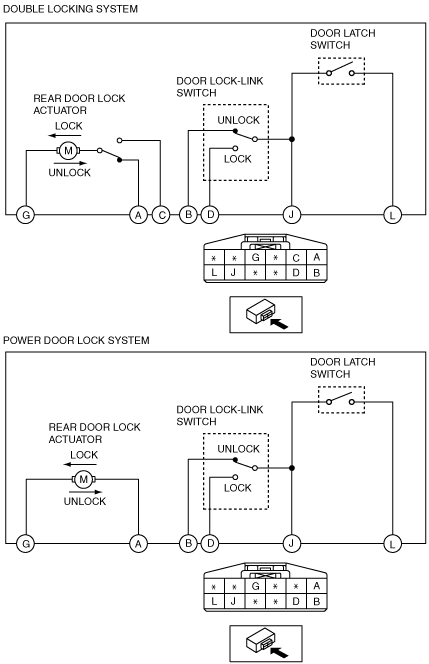

LH

am6zzw00004516

RH

am6zzw00004517
