KEYLESS BEEPER REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id0914004406z3

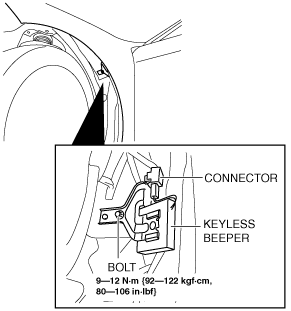

1.  Disconnect the negative battery cable.

2.  Slightly bend back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am6zzw00001719

4.  Remove the blot.

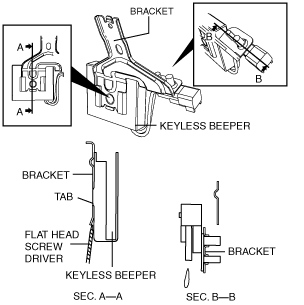

5.  Press the keyless beeper tab aside using a tape-wrapped flathead screwdriver.

am6zzw00001913

6.  Remove the keyless beeper from the bracket.

7.  Install in the reverse order of removal.
