LIFTGATE OPENER SWITCH INSPECTION

id091400444300

5HB

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(4)  High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)

(5)  Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION.)

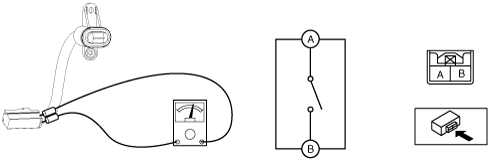

3.  Verify the continuity of liftgate opener switch terminals A and B.

am6zzw00004603

4.  Verify that the continuity is as indicated in the table.

am2zzw00000702

•  If not as indicated in the table, replace the liftgate opener switch.

WGN

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(4)  Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)

(5)  Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION.)

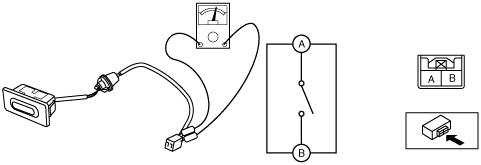

3.  Verify the continuity of liftgate opener switch terminals A and B.

am6zzw00004604

4.  Verify that the continuity is as indicated in the table.

am2zzw00000702

•  If not as indicated in the table, replace the liftgate opener switch.
