TRUNK LID LOCK ACTUATOR INSPECTION

id091400447400

1.  Disconnect the negative battery cable.

2.  Remove the recess. (See RECESS REMOVAL/INSTALLATION.)

3.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

4.  Remove the trunk lid latch and lock actuator. (See TRUNK LID LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

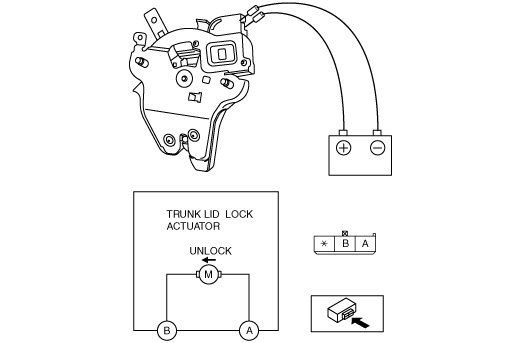

5.  Apply battery positive voltage and connect the ground to each terminal, and then verify the operation.

am6zzw00001678

•  If not as indicated in the table, replace the trunk lid latch and lock actuator.

Lock actuator operation	Terminal
	B+	Ground
UNLOCK	A	B
