LIFTGATE LATCH MECHANISM CONSTRUCTION/OPERATION [KEYLESS ENTRY SYSTEM]


id0914b3111900


STRUCTURAL VIEW

am6zzn00001168

OPERATION

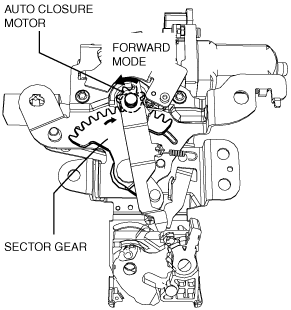

1.  If the liftgate is in the ajar position, the auto closure motor rotates normally to rotate the sector gear.

am6zzn00001345

2.  The sector gear lever presses hook A and rotates it in the reverse direction of the sector gear rotation.

am6zzn00001346

3.  Lever A presses hook A and rotates it to the lock direction. At the same time, the latch is pulled to the lock side.

am6zzn00001347

4.  If the normal motor rotation stop condition is detected, the motor is switched from normal to reverse rotation.
