INTRUDER SENSOR FUNCTION [KEYLESS ENTRY SYSTEM]


id0914b3115300

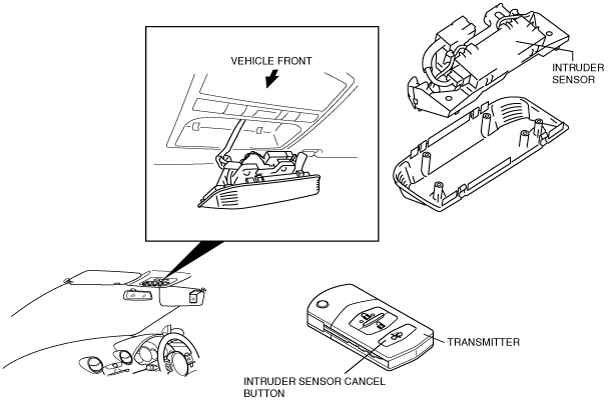

•  The intruder sensor is located in center part of the roof the forward part of the roof.
•  The intruder sensor detects movement in the vehicle by ultrasonic waves and sends the detection signal to the body control module(BCM).
am2zzn00000757
