POWER DOOR LOCK SYSTEM OPERATION [KEYLESS ENTRY SYSTEM]
id0914b3501600

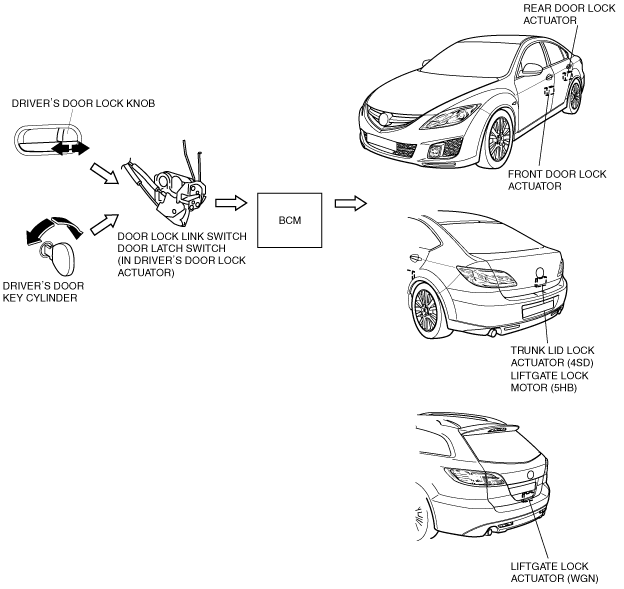

• When the doors are locked/unlocked using the driver's key cylinder or the driver's door lock knob, the door lock-link switch in the door lock actuator is locked/unlocked via the rod.
• The body control module (BCM) activates each lock actuator to lock/unlock according to the lock/unlock signal from the door lock-link switch or door latch switch.
