•  Installed to the trunk lid.

•  The trunk lid latch and lock actuator activates locking/unlocking of the latch lever.

am6zzn00001005

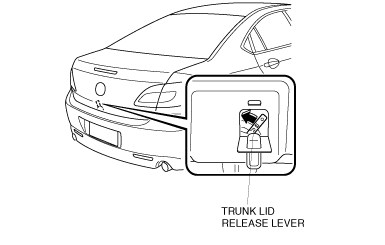

•  If the trunk lid cannot be opened for reasons such as a dead battery or a malfunction in the electrical system, the trunk lid can be opened using the trunk lid release lever which can release the trunk lid latch manually.

•  The unlock signal is sent from the BCM to the trunk lid lock actuator, and the trunk lid lock actuator frees (unlocked condition) the trunk lid. At the same time, the trunk lid lifts away via the spring force of the trunk lid weatherstrip and stopper rubber to release the latch.

Note

•  After the latch is released, the trunk lid latch is freed (unlock operation) after approx. 1.5 s.
