TRUNK LID/LIFTGATE OPENER FUNCTION [KEYLESS ENTRY SYSTEM]

id0914b3535900

• Doors are unlocked.

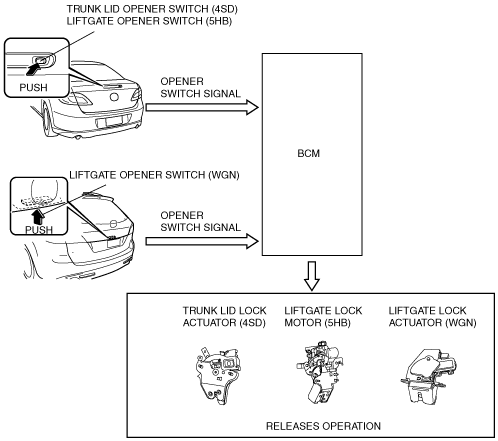

1. When the trunk lid/liftgate opener switch is pressed, a opener switch signal is input to the BCM.

2. The BCM unlocks the trunk lid lock actuator/liftgate lock actuator/liftgate lock motor (releases the latch) for approx. 1.5 s when the ignition is switched off or all the following conditions are met.

• Parking brake is applied (parking brake switch is on)(MTX)

• The selector lever is in the P position(ATX)

• Vehicle speed is 3 km/h or less

Note

• The trunk lid lock actuator/liftgate lock actuator/liftgate lock motor operates to unlock approx. 1—2 s after the trunk lid/liftgate opener switch is pressed.

am6zzn00001602
