POWER DOOR LOCK SYSTEM OPERATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
id0914z3501600

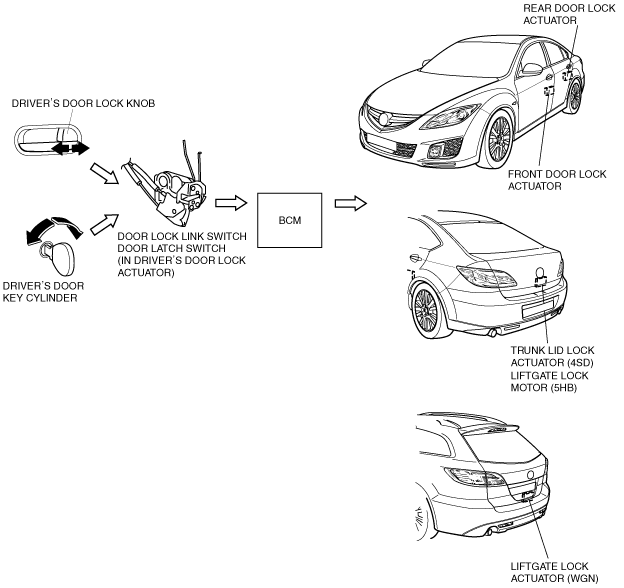

• When the driver's door is locked/unlocked with the driver's door lock knob or key cylinder, the door lock-link switch in the door lock actuator is locked/unlocked via the rod.
• The body control module (BCM) activates each lock actuator to lock/unlock according to the lock/unlock signal from the door lock-link switch or door latch switch.
