KEYLESS ANTENNA CONSTRUCTION/OPERATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
id0914z3523400

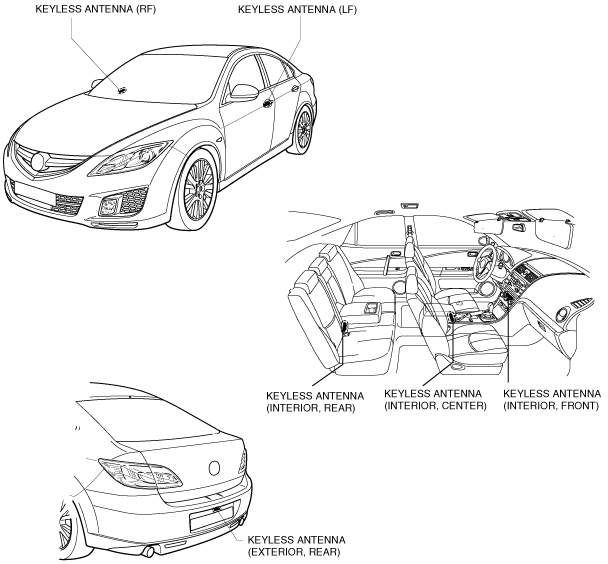

4SD, 5HB
• The antennas for request signal output form the request signal output range at 6 locations.
• The keyless antenna outputs request signals to the inside and outside of the vehicle based on the signals from the keyless control module.
• The keyless control module locates the advanced key by determining which antenna is receiving the signal.

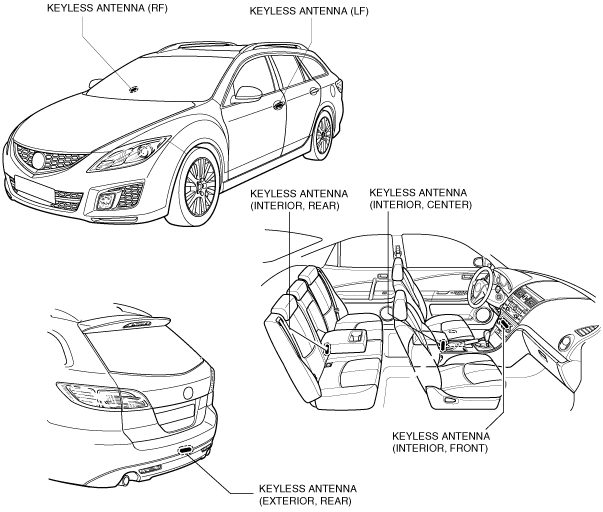

WGN
• The antennas for request signal output form the request signal output range at 6 locations.
• The keyless antenna outputs request signals to the inside and outside of the vehicle based on the signals from the keyless control module.
• The keyless control module locates the advanced key by determining which antenna is receiving the signal.
