TOUCH SENSOR CONSTRUCTION/OPERATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
id0914z3524900
• Installed on the front outer handle (driver's side/passenger's side).
• The doors can be unlocked by grasping the touch sensor with the advanced key carried.

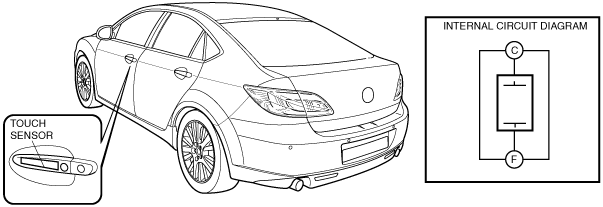

4SD, 5HB

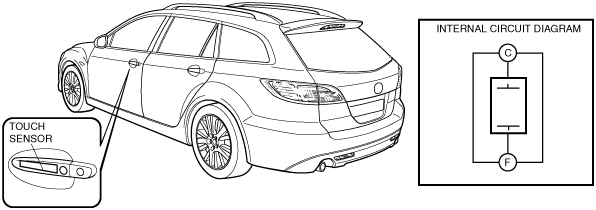

WGN
• Detects electrical capacity value between the outer handle and door.

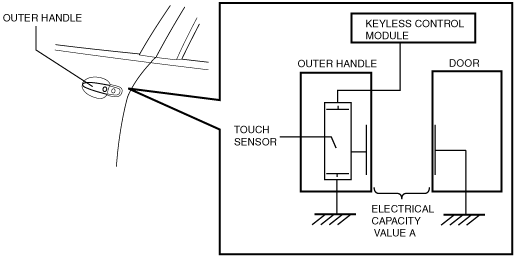

Operation when electrical capacity value does not change
• When electrical capacity value does not change, the touch sensor detects electrical capacity value A.
-
― Electrical capacity value A is determined by the distance between the outer handle and door.

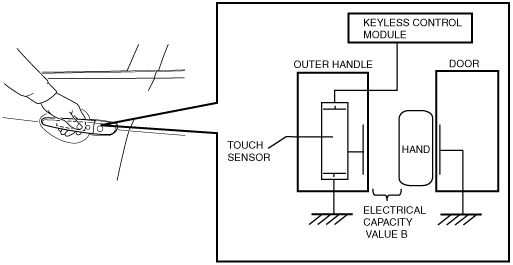

Operation when electrical capacity value changes
• When a hand is between the outer handle and vehicle, the distance between them is shortened and the electrical capacity changes from A to B. The touch sensor detects the change and sends a signal to the keyless control module.
-
Note
-
• To enable door lock verification, the doors cannot be unlocked using the touch sensor for 3 s after they are locked.
