RADIATOR GRILLE REMOVAL/INSTALLATION


id091600800900


Standard Type

1.  Remove the fasteners A.

2.  Remove the protector.

am6zzw00000898

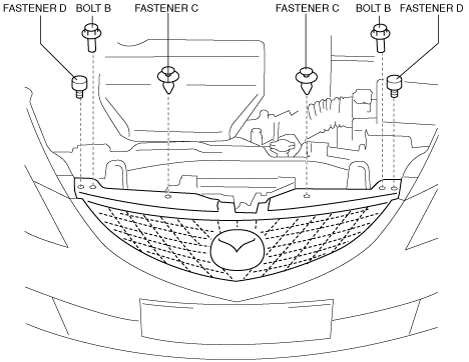

3.  Remove the bolts B and fasteners C and D.

am6zzw00000899

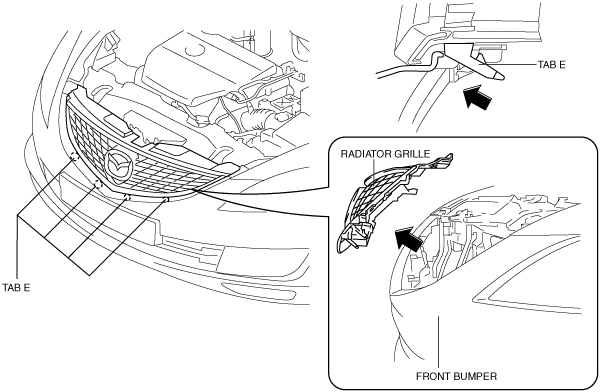

4.  Align the radiator grille with the tab E insertion angles, pull in the direction of the arrow, and disconnect tabs E.

am6zzw00000902

Caution
•  When removing the radiator grille, be careful not to damage the tabs E.

5.  Install in the reverse order of removal.


Sport Type

1.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

2.  Remove the fasteners A.

am6zzw00000900

3.  Remove the screws B.

4.  Pull up the Section C in the direction of the arrow shown in the figure.

5.  Press tabs D in the direction of the arrow, while pull the radiator grille inward, and remove it from the front bumper.

6.  Remove the screws E.

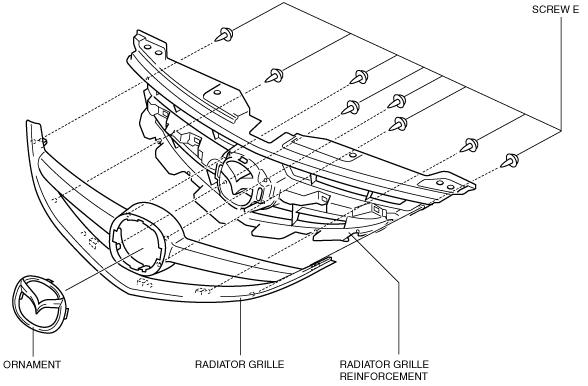

am6zzw00000677

7.  Remove the radiator grille reinforcement.

8.  Remove the ornament.

9.  Install in the reverse order of removal.
