FRONT SASH MOLDING REMOVAL

id091600805000

1.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION)

2.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION)

3.  Remove the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION)

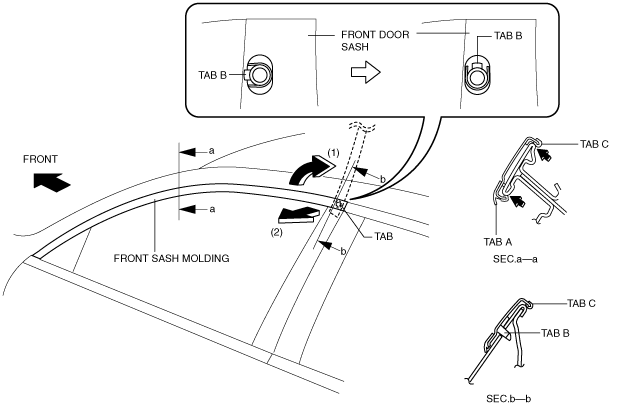

4.  Press tab A in the direction of the arrow and remove it.

am6zzw00002610

5.  Press tab C in the direction of the arrow and remove it.

6.  Rotate the front sash molding 90° in the direction of the arrow (1) shown in the figure, disconnect tab B, and pull out the front sash molding in the direction of the arrow (2).

7.  Remove the front sash molding.
