SPLASH SHIELD REMOVAL/INSTALLATION

id091600808400

1.  Remove the rear flap. (Vehicles with rear flap) (See REAR FLAP REMOVAL/INSTALLATION)

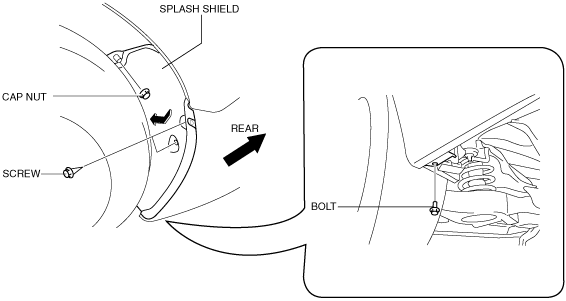

2.  Remove the bolt, screws and cap nut then remove the splash shield in the direction of the arrow shown in the figure.

am6zzw00000877

3.  Install in the reverse order of removal.
