ROOF RAIL DISAEEMBLY/ASSEMBLY
id091600998100

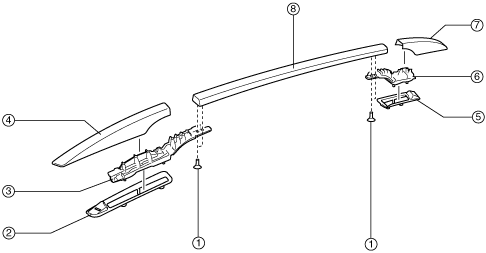

1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
aatjjw00004574
|
|
1
|
Screw
|
|
2
|
Front protector
|
|
3
|
Front stay
|
|
4
|
Front cover (See Cover Installation Note)
|
|
5
|
Rear protector
|
|
6
|
Rear stay
|
|
7
|
Rear cover (See Cover Installation Note)
|
|
8
|
Center roof rail
|
Cover Installation Note

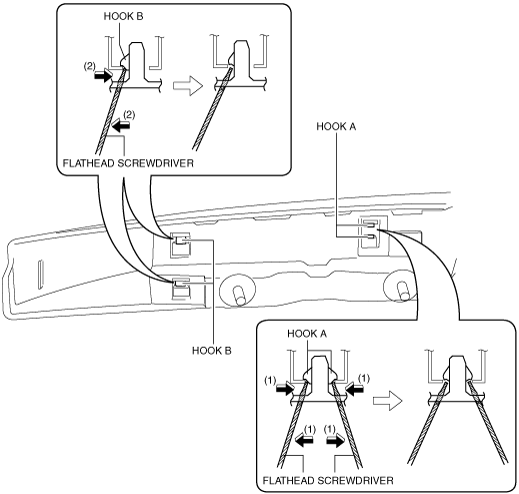

1. Move the hook A in the direction of arrows (1) shown in the figure using a flathead screwdriver.
2. Move the hook B in the direction of arrows (2) shown in the figure using a flathead screwdriver and remove the cover from the stay.
