FRONT SCUFF PLATE REMOVAL/INSTALLATION

id091700801400

1.  Detach tab A while pulling the front scuff plate in the direction of the arrow (1) shown in the figure, then detach tab B, pin C, and clip D while pulling in the direction of the arrow (2).

am6zzw00001727

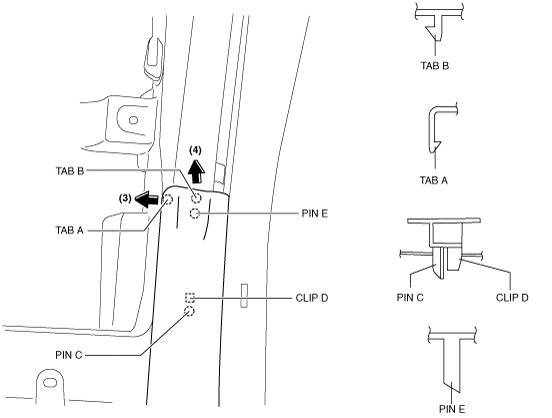

2.  Detach tab A while pulling the front scuff plate in the direction of the arrow (3) shown in the figure, pull the front scuff plate in the direction of the arrow (4), and remove it while detaching tab B, pin C, clip D and pin E.

am6zzw00001728

3.  Install in the reverse order of removal.
