REAR SCUFF PLATE REMOVAL/INSTALLATION
id091700801500

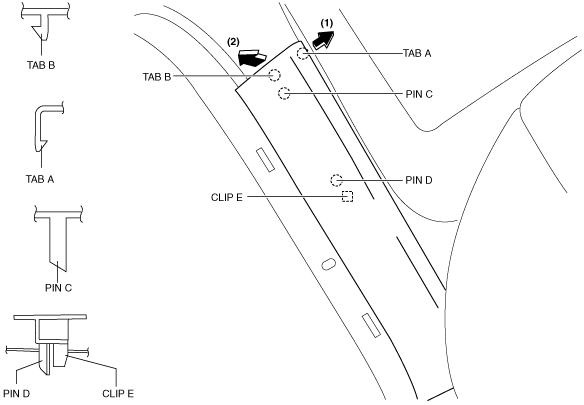

1. Detach tab A while pulling the rear scuff plate in the direction of the arrow (1) shown in the figure, then detach tab B, pin C, D and clip E while pulling in the direction of the arrow (2).
am6zzw00001729
|

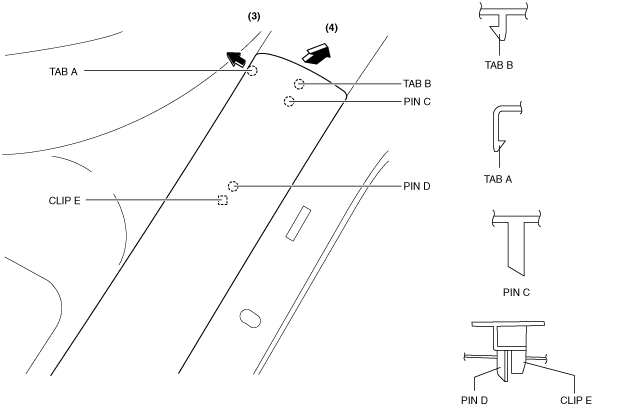

2. Detach tab A while pulling the rear scuff plate in the direction of the arrow (3) shown in the figure, pull the rear scuff plate in the direction of the arrow (4), and remove it while detaching tab B, pin C, D and clip E.
am6zzw00001730
|
3. Install in the reverse order of removal.
