CENTER PANEL LOWER REMOVAL/INSTALLATION

id091700898800

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

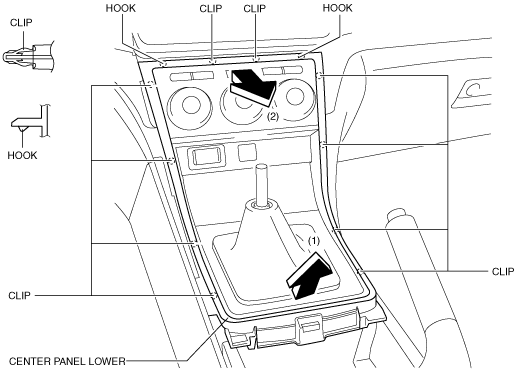

3.  Pull the center panel lower in the direction of the arrow(1) shown in the figure while detaching clips.

am6zzw00001348

4.  Pull the center panel lower in the direction of the arrow(2) shown in the figure and remove it while detaching clips and hooks.

5.  Disconnect the seat warmer switch connector. (Vehicles with seat warmer)

6.  Disconnect the cigarette lighter socket connector.

7.  Remove the ash tray illumination bulb.

8.  Install in the reverse order of removal.
