FRONT COMBINATION LIGHT CONSTRUCTION


id091800100700

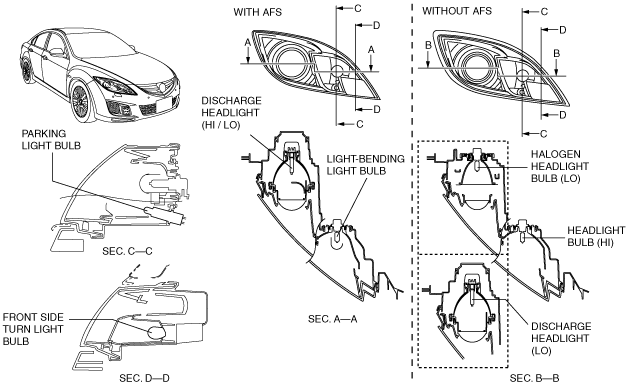

•  Front combination lights in which the headlight, front turn light, and parking light are integrated have been adopted to improve design ability.
•  Projector-type discharge headlights have been adopted which emit white light resembling sunlight over a wide-area from the headlights. (Discharge headlight)
•  Projector-type halogen headlights have been adopted which emit light over a wide-area from the headlights. (Halogen headlight)
•  The front combination lights have an integrated light-bending function for use with the AFS lights.
am6zzn00001257

Projector-type Headlight

•  Light emitted from the first focal point is projected off the reflector, gathered at the second focal point, and output through the convex lens.
acxuun00000469
