AUTO LIGHT SENSOR STRUCTURE

id091800106500

Caution

•  In the following cases, the auto light sensor cannot detect the illumination level correctly which could cause an auto light malfunction:

―  A sticker or label is adhered to the windshield above the auto light sensor.

―  The windshield is dirty above the auto light sensor.

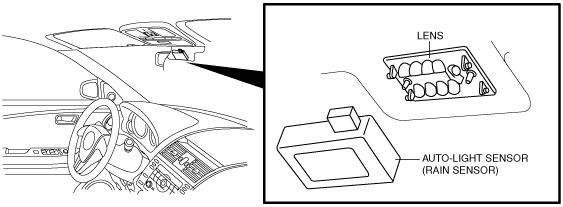

•  The auto light sensor is installed to the lens which is installed to top center area of the windshield

am6zzn00000505
