AFS (ADAPTABLE FRONT LIGHTING SYSTEM) OPERATION

id091800691000

•  The AFS control module controls the light-bending on/off according to the signals from the following switches, sensors and modules.
―  AFS OFF switch
―  Light switch
―  Steering angle sensor
―  PCM
•  When the steering wheel is turned to the left, light-bending on the left side is turned on. In addition, when the steering wheel is turned to the right, light-bending on the right side is turned on. Light-bending on both the left and right sides does not occur simultaneously.
am6zzn00001523

Operation Conditions

•  The AFS operates when all of the following conditions are met.
―  Ignition switch : ON (with keyless entry system)
―  Engine switch : ON (with advanced keyless entry and push button start system)
―  AFS OFF switch : OFF (AFS is operating)
―  Light switch : ON (Low beam)

Illumination Condition


TypeA

Applied VIN: JMZ GH1282*# 100001—129621, JMZ GH12D6*# 100001—129621, JMZ GH12F6*# 100001—129621, JMZ GH12F7*# 100001—129621, JMZ GH12L6*# 100001—129621, JMZ GH12L7*# 100001—129621, JMZ GH1482*# 100001—129621, JMZ GH14D6*# 100001—129621, JMZ GH14F6*# 100001—129621, JMZ GH14F7*# 100001—129621, JMZ GH14L6*# 100001—129621, JMZ GH14L7*# 100001—129621, JMZ GH19820# 100001—129621, JMZ GH19D60# 100001—129621, JMZ GH19F60# 100001—129621, JMZ GH19F70# 100001—129621, JMZ GH19L60# 100001—129621, JMZ GH12820# 100001—130658, JMZ GH12D60# 100001—130658, JMZ GH12F60# 100001—130658, JMZ GH12F70# 100001—130658, JMZ GH12L60# 100001—130658, JMZ GH14820# 100001—130658, JMZ GH14D60# 100001—130658, JMZ GH14F60# 100001—130658, JMZ GH14F70# 100001—130658, JMZ GH14L60# 100001—130658, JMZ GH19820# 100001—130658, JMZ GH19D60# 100001—130658, JMZ GH19F60# 100001—130658, JMZ GH19F70# 100001—130658, JMZ GH19L60# 100001—130658, JM6 GH1051*0 100001—102135, JM6 GH10F1*0 100001—102135, JM7 GH325**# 100001—101714, JM7 GH425**# 100001—101714, GH1051 100001—101714, JM7 GH32F**# 100001—101714, JM7 GH42F**# 100001—101714, GH10F1 100001—101714 JM7 GH345**# 100001—101714, JM7 GH445**# 100001—101714, JM7 GH34F**# 100001—101714, JM7 GH44F**# 100001—101714, JM7 GH395**# 100001—101714, JM7 GH495**# 100001—101714, JM7 GH39F**# 100001—101714, JM7 GH49F**# 100001—101714
•  When the operation conditions are met and the vehicle conditions are in the illumination region, the light-bending mechanism turns on. Even if the vehicle conditions are no longer in the illumination region, the light-bending mechanism continues to illuminate until the steering wheel angle is 26 degrees or less.

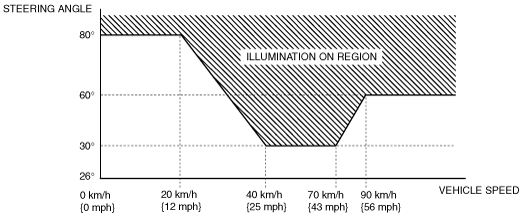

am6zzn00001368


TypeB

Applied VIN: JMZ GH1282*# 129622—198790, JMZ GH12D6*# 129622—198790, JMZ GH12F6*# 129622—198790, JMZ GH12F7*# 129622—198790, JMZ GH12L6*# 129622—198790, JMZ GH12L7*# 129622—198790, JMZ GH1482*# 129622—198790, JMZ GH14D6*# 129622—198790, JMZ GH14F6*# 129622—198790, JMZ GH14F7*# 129622—198790, JMZ GH14L6*# 129622—198790, JMZ GH14L7*# 129622—198790, JMZ GH19820# 129622—198790, JMZ GH19D60# 129622—198790, JMZ GH19F60# 129622—198790, JMZ GH19F70# 129622—198790, JMZ GH19L60# 129622—198790, JMZ GH12820# 130659—198790, JMZ GH12D60# 130659—198790, JMZ GH12F60# 130659—198790, JMZ GH12F70# 130659—198790, JMZ GH12L60# 130659—198790, JMZ GH14820# 130659—198790, JMZ GH14D60# 130659—198790, JMZ GH14F60# 130659—198790, JMZ GH14F70# 130659—198790, JMZ GH14L60# 130659—198790, JMZ GH19820# 130659—198790, JMZ GH19D60# 130659—198790, JMZ GH19F60# 130659—198790, JMZ GH19F70# 130659—198790, JMZ GH19L60# 130659—198790, JM6 GH1051*0 102136—119566, JM6 GH10F1*0 102136—119566, JM7 GH325**# 101715—119566, JM7 GH425**# 101715—119566, GH1051 101715—119566, JM7 GH32F**# 101715—119566, JM7 GH42F**# 101715—119566, GH10F1 101715—119566, JM7 GH345**# 101715—119566, JM7 GH445**# 101715—119566, JM7 GH34F**# 101715—119566, JM7 GH44F**# 101715—119566, JM7 GH395**# 101715—119566, JM7 GH495**# 101715—119566, JM7 GH39F**# 101715—119566, JM7 GH49F**# 101715—119566
•  When the operation conditions are met and the vehicle conditions are in the illumination region, the light-bending mechanism turns on. Even if the vehicle conditions are no longer in the illumination region, the light-bending mechanism continues to illuminate until the steering wheel angle is 26 degrees or less or the vehicle speed 8 km/h {5 mph} or less.

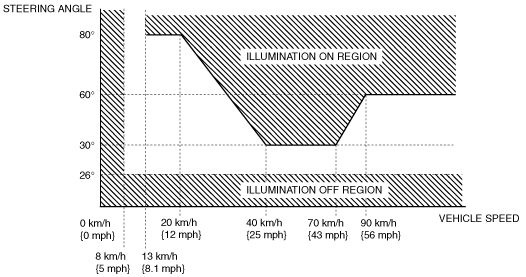

am6zzn00000507

•  The light-bending mechanism turns off 30 s after it turns on. The light-bending mechanism will not turn on again unless the steering wheel angle is 26 degrees or less after the illumination has turned off, even if the vehicle enters the illumination region.
Note
•  The bending-light continuous illumination control is equipped or not equipped on the vehicle depending on the vehicle’s period of manufacture.
