HEADLIGHT BULB REMOVAL/INSTALLATION


id091800800500


Low-beam


Halogen type

1.  Disconnect the negative battery cable.

2.  Remove the fasteners and slightly bend back the mudguard.

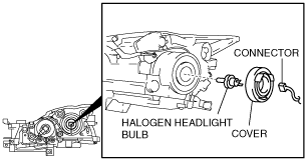

3.  Disconnect the connector.

am6zzw00002001

Caution
•  A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.

4.  Remove the cover.

5.  Remove the headlight bulb.

6.  Install in the reverse order of removal.


Discharge type

Warning
•  Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS.)

1.  Disconnect the negative battery cable.

2.  Remove the fasteners and slightly bend back the mudguard.

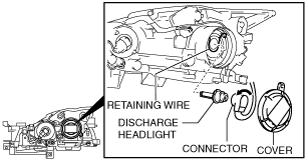

3.  Remove the cover.

am6zzw00002002

Caution
•  The bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.

4.  Remove the connector. (See Discharge headlight removal note.)

5.  Remove the discharge headlight. (See Discharge headlight removal note.)

6.  Install in the reverse order of removal.


Discharge connector removal note

1.  Rotate the connector in the direction of the arrow shown in the figure to remove it.

am6zzw00002003


Discharge headlight removal note

1.  Press sections A to release the bulb retaining wire and remove the discharge headlight.

am6zzw00000408


High-beam

1.  Disconnect the negative battery cable.

2.  Disconnect the connector.

am6zzw00002004

3.  Rotate the headlight bulb in the direction of the arrow shown in the figure.

am6zzw00002005

4.  Remove the headlight bulb.

Caution
•  A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.

5.  Install in the reverse order of removal.
