FRONT FOG LIGHT REMOVAL/INSTALLATION

id091800802100

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

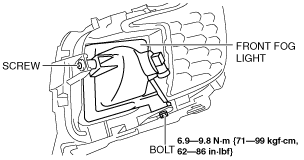

3.  Remove the screw and bolt shown in the figure.

am6zzw00002242

4.  Pull the front fog light in the direction of the arrow shown in the figure and remove the pin from the bumper.

am6zzw00002243

5.  Remove the front fog light.

6.  Install in the reverse order of removal.

7.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)
