FRONT TURN LIGHT BULB REMOVAL/INSTALLATION

id091800805000

1.  Disconnect the negative battery cable.

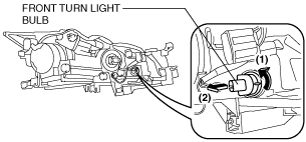

2.  Rotate the front turn light bulb in the direction of the arrow (1) shown in the figure.

am6zzw00002251

3.  Pull the front turn light in the direction of the arrow (2) shown in the figure and remove it.

4.  Remove the front turn light bulb.

5.  Install in the reverse order of removal.
