AUTO LEVELING SENSOR REMOVAL/INSTALLATION
id091800805700
Front
1. Disconnect the negative battery cable.
2. Lift up the vehicle.
3. Turn the steering wheel to the right.
4. Slightly bend back the mudguard.
5. Disconnect the connector.

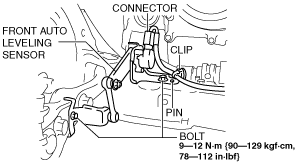

am6zzw00000590
|
6. Remove the bolts, then remove the front auto leveling sensor.
7. Install in the reverse order of removal.
8. Perform the auto leveling system initialization. (See AUTO LEVELING SYSTEM INITIALIZATION.)
Rear
1. Disconnect the negative battery cable.
2. Lift up the vehicle.
3. Remove the nuts shown in the figure.
am6zzw00000591
|
4. Disconnect the connector.
am6zzw00000592
|
5. Remove the rear auto leveling sensor.
6. Install in the reverse order of removal.
7. Perform the auto leveling system initialization. (See AUTO LEVELING SYSTEM INITIALIZATION.)
