INBOARD LIGHT BULB REMOVAL/INSTALLATION

id091800806000

1.  Disconnect the negative battery cable.

2.  Remove the service hole cover.

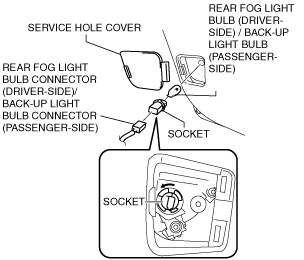

am6zzw00003471

3.  Disconnect the rear fog light bulb connector. (driver-side) (with rear fog light)

4.  Disconnect the back-up light bulb connector. (passenger-side)

5.  Rotate the socket in the direction of the arrow shown in the figure to remove it.

6.  Remove the rear fog light bulb. (driver-side) (with rear fog light)

7.  Remove the back-up light bulb. (passenger-side)

8.  Install in the reverse order of removal.
