LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION

id091800857800

4SD, 5HB

1.  Disconnect the negative battery cable.

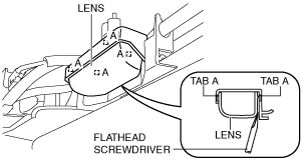

2.  Insert a tape-wrapped flathead screwdriver to the position shown in the figure, release the tabs, and remove the lens.

am6zzw00002400

3.  Pull the bulb outward and remove it.

am6zzw00003601

4.  Install in the reverse order of removal.

WGN

1.  Disconnect the negative battery cable.

2.  Expand the ends of the license plate light in the direction of the arrow shown in the figure, release the tabs, and remove the lens.

am6zzw00003351

3.  Pull the bulb outward and remove it.

am6zzw00003602

4.  Install in the reverse order of removal.
