HIGH-MOUNT BRAKE LIGHT DISASSEMBLY/ASSEMBLY

id091800864400

4SD, 5HB

1.  Disconnect the negative battery cable.

2.  Remove the trunk lid trim. (4SD) (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

3.  Remove the liftgate upper trim. (5HB) (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

4.  Remove the liftgate side trim. (5HB) (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

5.  Remove the liftgate lower trim. (5HB) (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

6.  Remove the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)

7.  Remove the tabs A.

am6zzw00002723

8.  Remove the high-mount brake light outer lens.

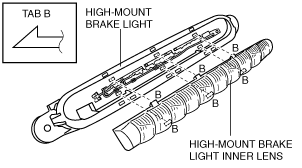

9.  Remove the tabs B.

am6zzw00002733

10.  Remove the high-mount brake light inner lens.

11.  Install in the reverse order of removal.

WGN

1.  Disconnect the negative battery cable.

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Remove the rear spoiler. (See REAR SPOILER REMOVAL.) (See REAR SPOILER INSTALLATION.)

4.  Remove the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)

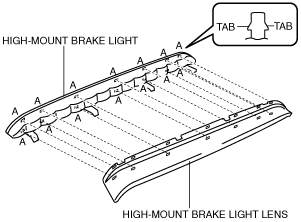

5.  Remove the tabs A.

am6zzw00003472

6.  Remove the high-mount brake light lens.

7.  Install in the reverse order of removal.
