REAR WIPER SYSTEM OPERATION

id091900100900

Continuous Operation

1. When the rear wiper switch is turned to the ON position, current (1) flows to the rear wiper relay in the relay block, turning it on.

2. When the rear wiper relay turns on, current (2) flows to the rear wiper motor and continuous operation starts.

3. When the rear wiper switch is turned to the OFF position while the rear wipers are operating, the rear wiper motor performs an auto-stop operation and the wipers stop in the park position.

am6zzn00000982

Auto-stop Operation

1. When the rear wiper switch is turned to the OFF position while the wipers are operating, current flows to the auto-stop switch, which is on, and the rear wiper motor operates until it returns to the park position, stopping the wipers.

am6zzn00000983

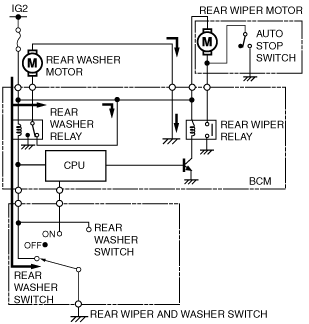

Washer Operation

• When the rear washer switch is pressed on, the rear washer relay turns on and the rear washer motor operates.
